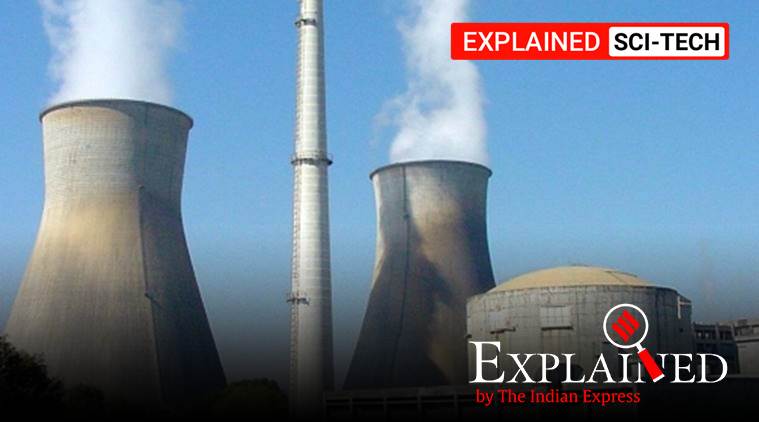

The third unit of the Kakrapar Atomic Power Project (KAPP-3) in Gujarat achieved its ‘first criticality’ — a term that signifies the initiation of a controlled but sustained nuclear fission reaction — at 9.36 am on Wednesday. PM Narendra Modi congratulated India’s nuclear scientists on this achievement, describing the development of the indigenous reactor as “a shining example of Make in India” and a “trailblazer for many such future achievements”.
Why is this achievement significant?
This is a landmark event in India’s domestic civilian nuclear programme given that KAPP-3 is the country’s first 700 MWe (megawatt electric) unit, and the biggest indigenously developed variant of the Pressurised Heavy Water Reactor (PHWR).
The PHWRs, which use natural uranium as fuel and heavy water as moderator, are the mainstay of India’s nuclear reactor fleet. Until now, the biggest reactor size of indigenous design was the 540 MWe PHWR, two of which have been deployed in Tarapur, Maharashtra.
The operationalisation of India’s first 700MWe reactor marks a significant scale-up in technology, both in terms of optimisation of its PHWR design — the new 700MWe unit addresses the issue of excess thermal margins — and an improvement in the economies of scale, without significant changes to the design of the 540 MWe reactor. (‘Thermal margin’ refers to the extent to which the operating temperature of the reactor is below its maximum operating temperature.)
Four units of the 700MWe reactor are currently being built at Kakrapar (KAPP-3 and 4) and Rawatbhata (RAPS-7 and 8). The 700MWe reactors will be the backbone of a new fleet of 12 reactors to which the government accorded administrative approval and financial sanction in 2017, and which are to be set up in fleet mode.
As India works to ramp up its existing nuclear power capacity of 6,780 MWe to 22,480 MWe by 2031, the 700MWe capacity would constitute the biggest component of the expansion plan. Currently, nuclear power capacity constitutes less than 2% of the total installed capacity of 3,68,690 MW (end-January 2020).
As the civilian nuclear sector gears up for the next frontier — building a 900 MWe Pressurised Water Reactor (PWR) of indigenous design — the experience of executing the larger 700MWe reactor design will come in handy, especially with regard to the improved capability of making large pressure vessels. This is alongside isotope enrichment plants being developed to supply part of the required enriched uranium fuel to power these new generation reactors over the next decade or so, Department of Atomic Energy officials have said.
When did work start on this 700 MWe project?
The first “pour of concrete” happened in November 2010, and this unit was originally expected to be commissioned in 2015.
State-owned Nuclear Power Corporation of India Ltd (NPCIL) had awarded the reactor-building contract for both KAPP-3 and 4 to Larsen & Toubro at an original contract value of Rs 844 crore. The original cost of two 700 MWe units was pegged at Rs 11,500 crore, and the tariff per unit was originally calculated to be Rs 2.80 per unit (kWh) at 2010 prices (a cost of roughly Rs 8 crore per MWe). This costing is expected to have seen some escalation.
The capital investment for these projects is being funded with a debt-to-equity ratio of 70:30, with the equity part being funded from internal resources and through budgetary support.
📣 Express Explained is now on Telegram. Click here to join our channel (@ieexplained) and stay updated with the latest
What does achieving criticality mean?
Reactors are the heart of an atomic power plant, where a controlled nuclear fission reaction takes place that produces heat, which is used to generate steam that then spins a turbine to create electricity. Fission is a process in which the nucleus of an atom splits into two or more smaller nuclei, and usually some byproduct particles. When the nucleus splits, the kinetic energy of the fission fragments is transferred to other atoms in the fuel as heat energy, which is eventually used to produce steam to drive the turbines. For every fission event, if at least one of the emitted neutrons on average causes another fission, a self-sustaining chain reaction will take place. A nuclear reactor achieves criticality when each fission event releases a sufficient number of neutrons to sustain an ongoing series of reactions.
Congratulations to our nuclear scientists for achieving criticality of Kakrapar Atomic Power Plant-3! This indigenously designed 700 MWe KAPP-3 reactor is a shining example of Make in India. And a trailblazer for many such future achievements!
— Narendra Modi (@narendramodi) July 22, 2020
What are the milestones in the evolution of India’s PHWR technology?
PHWR technology started in India in the late 1960s with the construction of the first 220 MWe reactor, Rajasthan Atomic Power Station, RAPS-1 with a design similar to that of the Douglas Point reactor in Canada, under the joint Indo-Canadian nuclear co-operation. Canada supplied all the main equipment for this first unit, while India retained responsibility for construction, installation, and commissioning.
For the second unit (RAPS-2), import content was reduced considerably, and indigenisation was undertaken for major equipment. Following the withdrawal of Canadian support in 1974 after Pokhran-1, Indian nuclear engineers completed the construction, and the plant was made operational with a majority of components being made in India.
From the third PHWR unit (Madras Atomic Power Station, MAPS-1) onward, the evolution and indigenisation of the design began. The first two units of PHWR using indigenously developed standardised 220 MWe design were set up at the Narora Atomic Power Station.
This standardised and optimised design had several new safety systems that had been incorporated in five more twin-unit atomic power stations with a capacity of twin 220 MWe units located at Kakrapar, Kaiga, and Rawatbhata.
To realise economies of scale, the design of 540 MWe PHWR was subsequently developed, and two such units were built at Tarapur. Further optimisations were carried out when the upgrade to 700 MWe capacity was undertaken, with KAPP-3 the first unit of this kind.
Don’t miss from Explained | Heatwaves, floods, droughts: projections for India in coming decades
Does the 700MWe unit mark an upgrade in terms of safety features?
PHWR technology has several inherent safety features. The biggest advantage of the PHWR design is the use of thin walled pressure tubes instead of the large pressure vessels that are used in pressure vessel type reactors. This results in the distribution of pressure boundaries to a large number of small-diameter pressure tubes, thus lowering the severity of the consequence of an accidental rupture of the pressure boundary.
Additionally, the 700 MWe PHWR design has enhanced safety through a dedicated ‘Passive Decay Heat Removal System’, which can removing decay heat (released as a result of radioactive decay) from the reactor core without requiring any operator actions. This is on the lines of similar technology adopted for Generation III+ plants to negate the possibility of a Fukushima-type accident that happened in Japan in 2011.
The 700 MWe PHWR unit, like the one deployed in KAPP, is equipped with a steel-lined containment to reduce any leakages, and a containment spray system to reduce the containment pressure in case of a loss of coolant accident.
