Now, self-healing batteries for wearable electronics

Existing lithium ion batteries for wearable electronics can be bent and rolled up without any problems, but can break when they are twisted too far or accidentally stepped on -which can happen often when being worn.

By: PTI | Beijing | Updated: October 24, 2016 5:53 pm

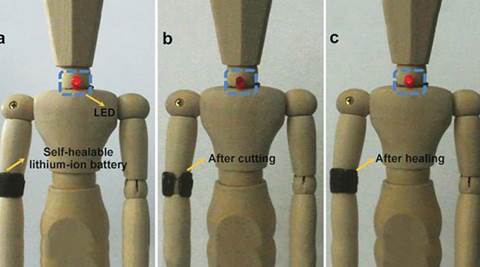

self healing batteries, self healing batteries wearable electronics , wearable electronics, wearable electronics self heal, latest news, latest tech news, technology news The researchers say that when their battery is broken, it can be repaired simply by pressing each of the broken ends together (Credit: Wiley-VCH 2016)

Scientists have developed a thin, flexible, lithium ion battery with self-healing properties that can be safely used in wearable electronics. Even after completely breaking apart, the battery can grow back together without significant impact on its electrochemical properties, researchers said. Electronics that can be embedded in clothing are a growing trend. However, power sources remain a problem.

Existing lithium ion batteries for wearable electronics can be bent and rolled up without any problems, but can break when they are twisted too far or accidentally stepped on -which can happen often when being worn.

This damage not only causes the battery to fail, it can also cause a safety problem: Flammable, toxic, or corrosive gases or liquids may leak out. Researchers from Fudan University in China, the Samsung Advanced Institute of Technology in South Korea, and the Samsung R&D Institute in China have now developed a new family of lithium ion batteries that can overcome such accidents thanks to their amazing self-healing powers.

In order for a complicated object like a battery to be made self-healing, all of its individual components must also be self-healing. The electrodes in these batteries consist of layers of parallel carbon nanotubes. Between the layers, the scientists embedded the necessary lithium compounds in nanoparticle form.

In contrast to conventional lithium ion batteries, the lithium compounds cannot leak out of the electrodes, either while in use or after a break. The thin layer electrodes are each fixed on a substrate of self-healing polymer. Between the electrodes is a novel, solvent-free electrolyte made from a cellulose-based gel with an aqueous lithium sulfate solution embedded in it. This gel electrolyte also serves as a separation layer between the electrodes.

After a break, it is only necessary to press the broken ends together for a few seconds for them to grow back together. Both the self-healing polymer and the carbon nanotubes “stick” back together perfectly. The parallel arrangement of the nanotubes allows them to come together much better than layers of disordered carbon nanotubes. The electrolyte also poses no problems.

Whereas conventional electrolytes decompose immediately upon exposure to air, the new gel is stable. Free of organic solvents, it is neither flammable nor toxic, making it safe for this application. The capacity and charging/discharging properties of a battery “armband” placed around a doll’s elbow were maintained, even after repeated break/self-healing cycles. The research was published in the journal Angewandte Chemie.
